LK-series
N1C.LK10000
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 4 x NEMA 5-15R
Transfer Time: 0 ns
Phase: Single Phase
Application/Usage: Hospital
Cord Length: 72"
Load Capacity (VA): 10000 VA
Load Capacity (Watt): 10 kW
Input Voltage: 230 V AC
Input Voltage Range: 135 V AC - 250 V AC
Output Voltage:
- 220 V AC
- 230 V AC
- 240 V AC
Waveform Type: Pure Sine Wave
Network Management:
- Intelligent Card Slot
- SNMP
- Dry Contact
Serial Port: Yes
USB: Yes
EPO Port: Yes
Battery Chemistry: Lithium-Ion (LiFePO4)
Backup/Run Time (Full Load): 7 Minute
Backup/Run Time (Half Load): 14.50 Minute
Typical Battery Recharge Time: 6 Hour
Maximum Operating Temperature: 122°F (50°C)
Operating Humidity: 20% - 90%
Form Factor: Rack-mountable
Rack Height: 2U
Package Contents:

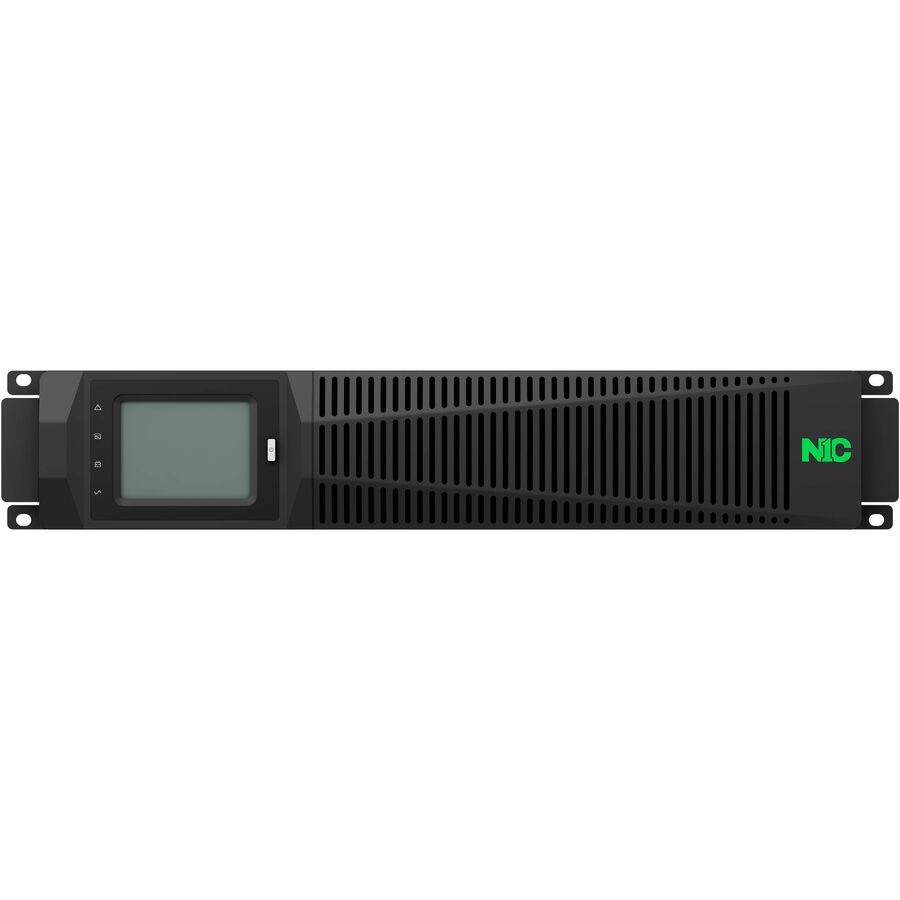

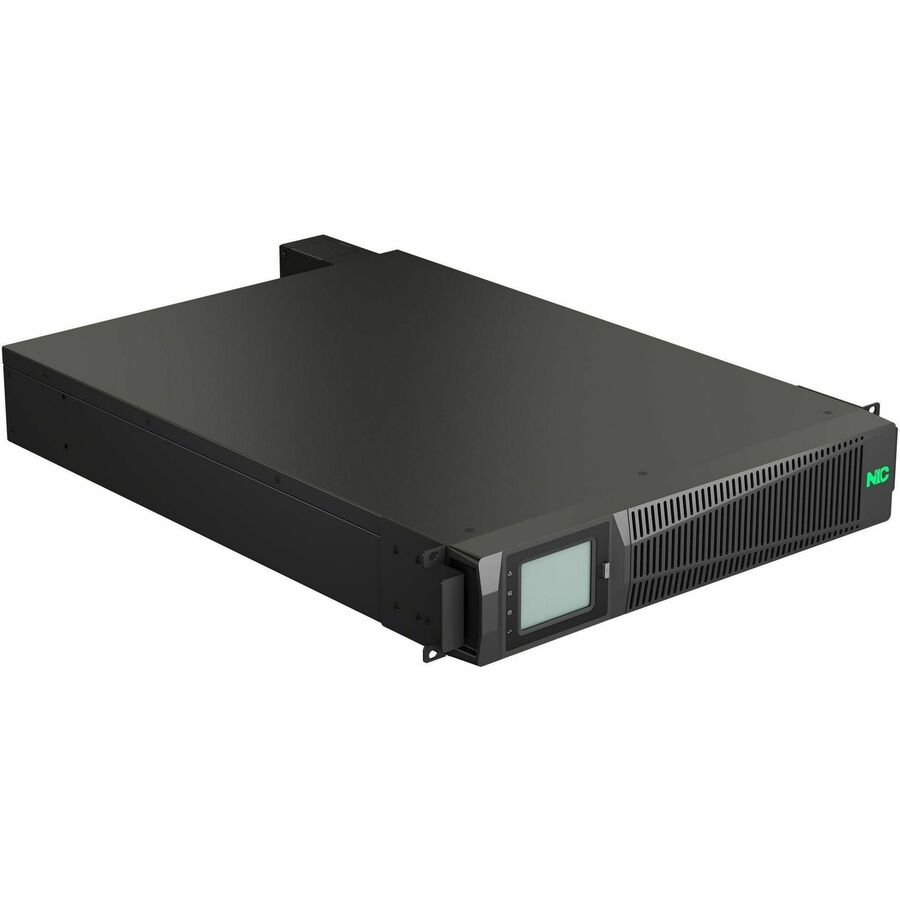

- LK N1C.LK10000 10000VA Rack-mountable UPS
- Universal 2-/4-Post Rail Kit
- USB Cable
- SNMP Card
- Manual
- Software
- Input Power Cable
Certifications & Standards:
- UL1642
- UL1778 (cTÜVus)
- CSA C22.2 No. 107.3
- FCC Part 15 Class A
- UN38.3
Country of Origin: China
Limited Warranty: 10 Year
Additional Warranty Information:
10-year warranty on electronics and battery
