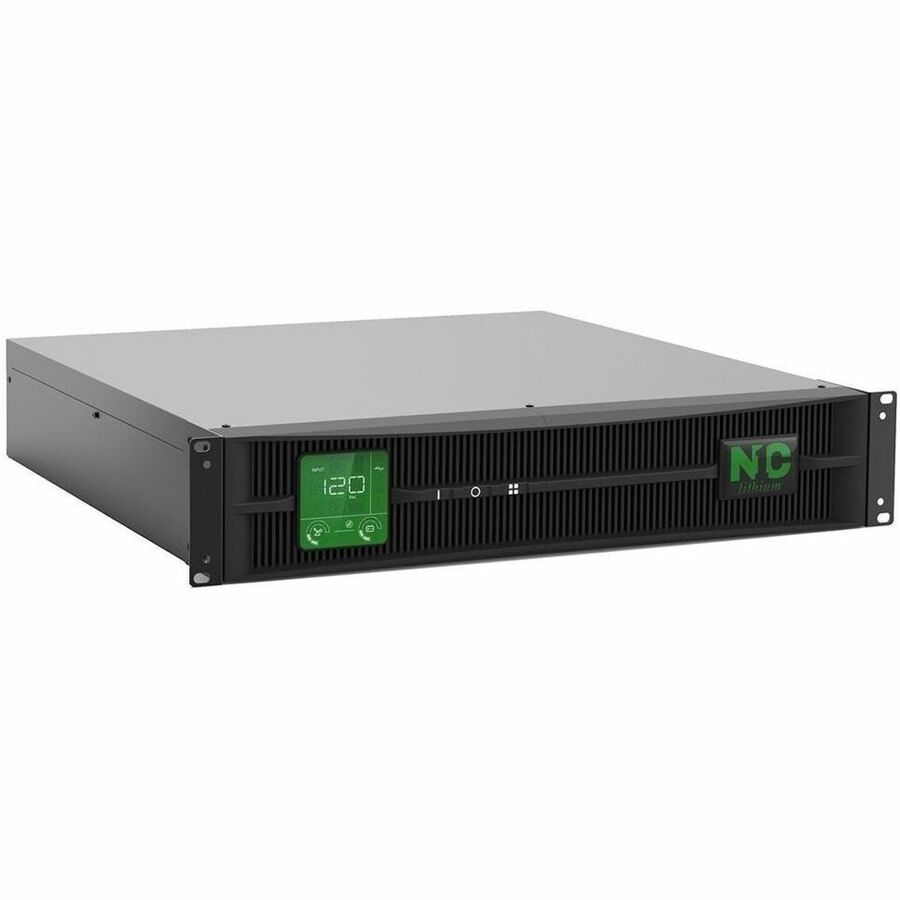

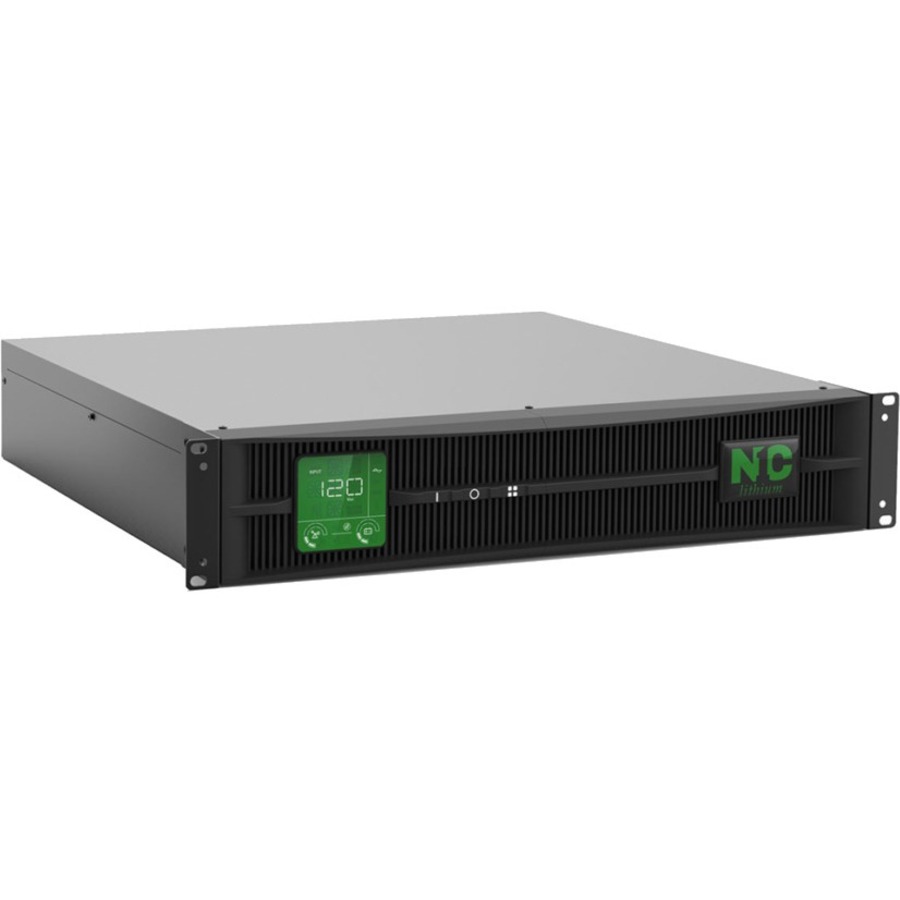

L-series
N1C.L2200

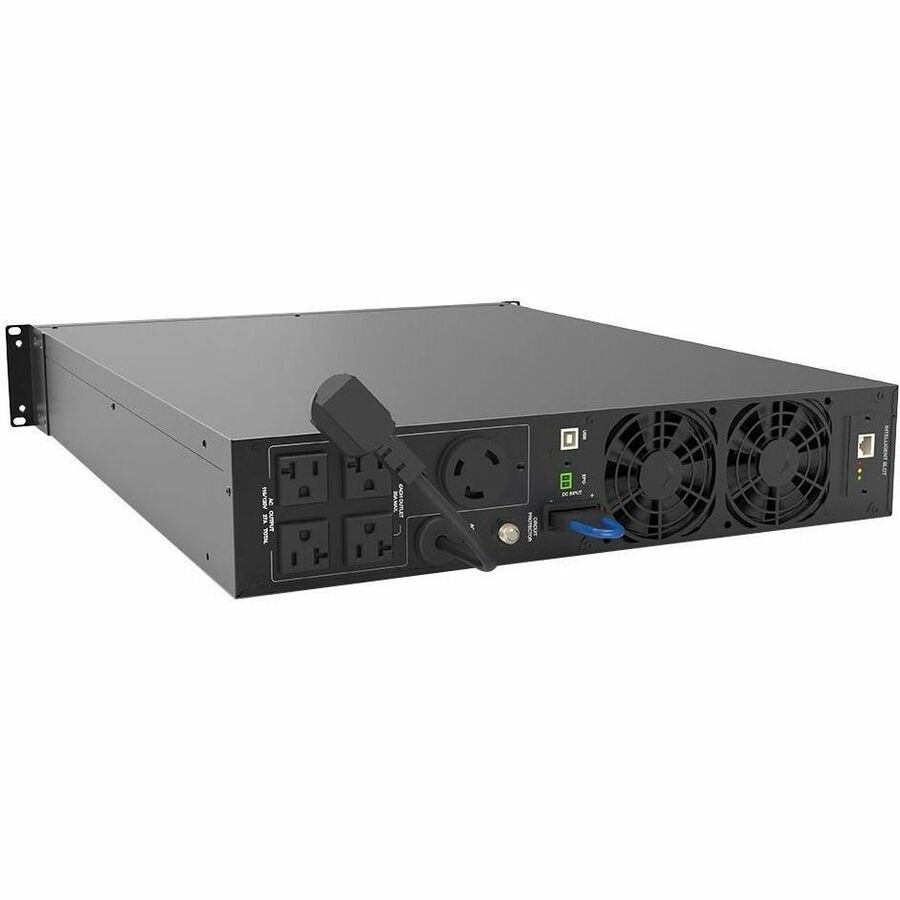

Receptacle Type: NEMA 5-15/20R
Receptacle Detail: 6 x NEMA 5-15/20R
Overload Protection: Yes
Transfer Time: 0 ns
Phase: Single Phase
Load Capacity (VA): 2200 VA
Load Capacity (Watt): 1980 W
Input Voltage: 120 V AC
Input Voltage Range: 88 V AC - 148 V AC
Output Voltage: 120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Input Power Factor: 0.9
Network Management:
- SNMP
- Network Card
Alarm:
- Low Battery
- Abnormal Input Voltage
- UPS Failure
USB: Yes
EPO Port: Yes
DC System Voltage: 72 V DC
Battery Chemistry: Lithium-Ion (LiFePO4)
Backup/Run Time (Full Load): 25 Minute
Backup/Run Time (Half Load): 47 Minute
Battery Life: 15 Year
Typical Battery Recharge Time: 2 Hour
Maximum Operating Temperature: 140°F (60°C)
Height: 3.4"
Width: 17.2"
Depth: 24.4"
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 60 lb
Package Contents:
Country of Origin: China
Limited Warranty: 10 Year Lifetime
